Simmons SDS7

Simmons SDS7

For pricing, please use the Login link above.

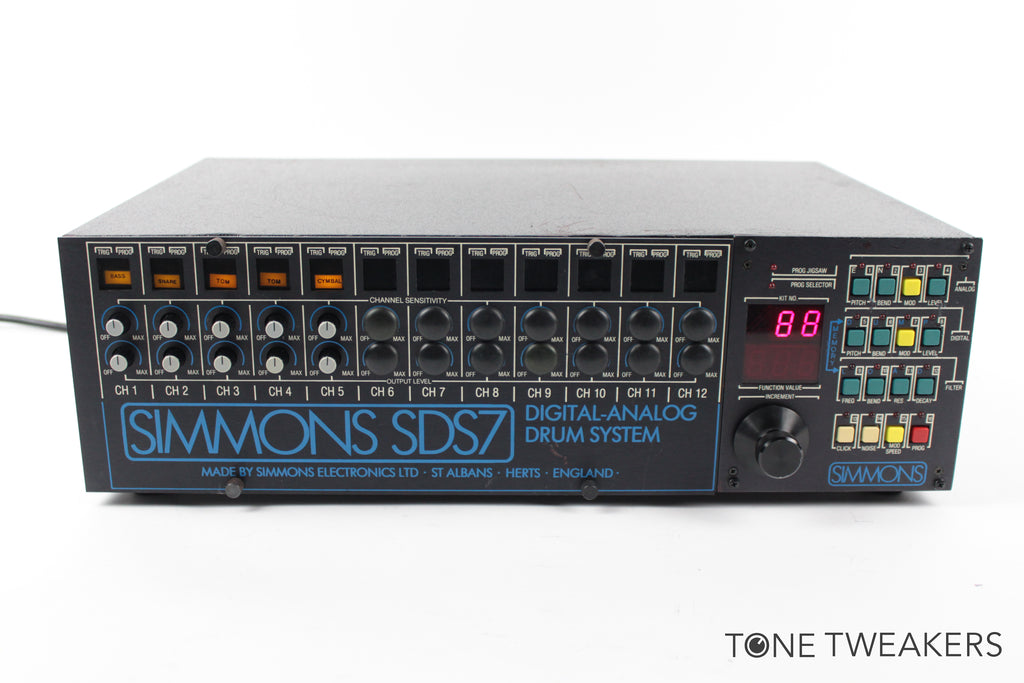

Simmons SDS7 For Sale. This unit has been meticulously refurbished and is working like new again and better than the rest.

In additional to sorting out any problems, we paid our tech to make this unit better than others on the market, a process that took a whopping 30 hours of skilled vintage synth tech time, plus parts costs.

Fully disassembled and cleaned inside and out
Replaced electrolytic capacitors in power supply
Resoldered regulators
Replaced all RAM (6166 x 10)
Installed new battery
Reloaded sounds off cartridge to first 80 kit banks
Cleaned all switch contacts
Replaced many IC sockets
There was a broken XLR connector, so we had to painstakingly remove the original rivets to remove the circuit board, replace the connector, and then Instal new rivets for 13 female XLR connectors - a time consuming PITA
Cleaned and lubed all pots

This unit is intentionally priced at what we believe to be top market value because of the big investment of time, love and money to make it better than others you may find.


Ah, if you dont know this one I almost feel like I shouldnt tell you about it. It's one of our secret weapons. Its a drum synth with 5 cards in it, each containing a drum synthesizer of its own. It can be expanded to 12 cards but gets really hot when you do that, so you probably wouldnt want more than 5 or 6. Each card contains an EPROM chip which has a lo-fi sample on it. If you have an eprom burner (like the Simmons EPB we sometimes sell) or hunt around for sounds, you can basically put any samples in there, as long as they arent too long for the chips. The real strength of this machine lies not in the sample playback but in the synthesizer section. This section is CEM based (CEM chips were used in old Sequential and Oberheim analog synths, among others). The programmer section on the right side stores drum kits which are basically sound parameter settings for all card slots. The memory is battery backed and stored on power down. Each of these drum synthesizers has its own 1/4" trigger input. I drive mine from an ARP Sequencer, but you can use other trigger sources like other analog sequencers, old drum machines or maybe even audio signals.  And lets not forget drum pads - this is what Simmons had in mind when they designed this unit. The pad inputs are XLR jacks separate from the sequencer ins. Did I mention each of the synths can be controlled by a CV signal rather than a gate? Using it this way, each channel will actually play pitches like a normal synth. The same applies when you hook pads up - the pad sensitivity can modulate the pitch of the synth sound. Cool. Each channel slot has its own audio output and theres a mix out as well. So, how does it sound?  INCREDIBLE! This is my favorite machine for techno / electro / industrial synth percussion. Each synth has a built in oscillator that can actually be frequency modulated (FM) by the built in LFO (which will run at higher frequencies than your typical LFOs). Add bend, a resonant filter, noise source, click setting, filter envelope and decay, as well as controls for the built in sample and you've got a really cool drum synth. This box is great for blips, bleeps, cracks and thuds. If you're into programming and want some cool analog type drum sounds with personality, this box is invaluable.

The top video below shows the unit for sale, using an ARP Sequencer to play just 2 out of its channels. The other videos show previously sold units.
